FlashRunner Traditional Series is a universal solution to be employed in the production environment, R&D area or Lab applications.

Overview

  • Fastest programming algorithms;
  • ATE integration;
  • Standalone operations (projects and code images stored on a memory card);
  • Controllable by any host system via RS-232 or Ethernet (right to the model);
  • Supports most ISP protocols (BDM, JTAG, SPI, I2C, MON, ICC, SCI, etc.);
  • Flexible and fully configurable;
  • Compact and robust design for production environments;
  • Data integrity guaranteed;
  • All of the models of the FlashRunner I series have been designed for maximum performance and reliability.

Software Features

FlashRunner comes with a Windows utility that allows you to communicate with the instrument and perform the most common operations: send commands, manage SD card files, update the instrument’s firmware, etc.
ASCII-based commands used to control and setup.

Two ways to receive and execute commands:

  • Over the RS-232 or Ethernet connection (controlled by a host system (e.g. Windows HyperTerminal);
  • Via “scripts” stored in its SD card (Standalone mode).

SD memory card (FAT16).
Unlimited projects (scripts).
Log files.

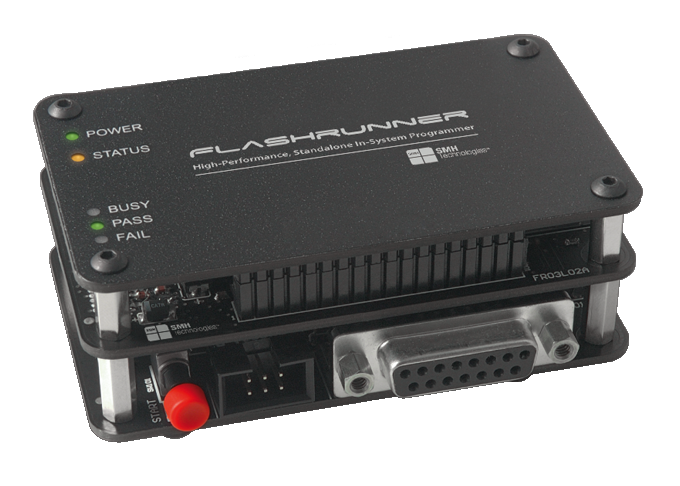

FR III series

Easy integration in Programming Lines
(ATE, ICT, Test Fixtures).
Includes all programming algorithms
for a selected silicon producer.

FlashRunner has been built for speed. Both the hardware and firmware have been engineered to work together in such an efficient way as to eliminate communication bottlenecks. On top of this, fast Programming Algorithms have been developed that reach the memory technology speed limit of the target device. This makes FlashRunner one of the fastest universal In-System Programmers on the market, enabling you to significantly cut production costs.

FlashRunner works either in standalone mode or driven by a host system, through Ethernet or RS-232 connections. Its simple and versatile interface allows FlashRunner to be easily and seamlessly integrated into Automatic Test Equipment (ATE) systems. FlashRunner is compatible with Agilent, Teradyne, SPEA, Genrad, and other systems and test fixtures.

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint. Every component of the system has been engineered to withstand the harshest production environments. Optoisolation, ESD protection, CRC on data transfers and detailed reports make FlashRunner the perfect choice when certainty of the programming flow is of the utmost importance.

Hardware Features

  • Power supply input 7.5V DC;
  • Five digital I/O lines;
  • Two digital I/O or analog output lines;
  • One programmable output voltage (0 to 5.5V, 0.5A);
  • One programmable clock output;
  • Secure Digital memory card (up to 2 GB);
  • I/O protection;
  • One command input (START);
  • Three status outputs (FAIL, PASS, BUSY);
  • RS-232 channel.

FlashRunner’s open architecture makes its firmware easily upgradable to support new features.



SPECIFIC SILICON PRODUCER

FR03ALT0

FR03AYD0

FR03ATM0

FR03CAS0

FR03CATO

FR03CYP0

FR03ELM0

FR03EMB0

FR03ESM0

FR03FJTO

FR03FSL0

FR03INF0

FR03LAT0

FR03MAX0

FR03MCPO

FR03MEM0

FR03MVL0

FR03MXM0

FR03NEC0

FR03NMX0

FR03NRD0

FR03NXP0

FR03REN0

FR03RHM0

FR03SLL0

FR03SAM0

FR03SPS0

FR03SST0

FR03TSH0

FR03TXI0

FR03WNB0

FR03STM0

SUPPORTED SILICON PRODUCER

FR QUATTRO

FlashRunner Quattro is a high-integration in-system gang programmer, based on the FlashRunner patented technology.

FlashRunner Quattro is designed for programming multi-PCB panel assemblies. FlashRunner Quattro is composed of a mainboard which hosts the programming and demultiplexing modules, plus various connectors used to interface to the target system and host/ATE.

FlashRunner’s fully reconfigurable and flexible hardware is capable of programming a vast amount of Flashed-based microcontrollers and serial memories. Currently supporting more than 3.000 devices, FlashRunner’s device list is continuously increasing at a fast pace. Thanks to special partnerships with the most important Silicon Manufacturers, our engineers are constantly updated with first-hand technical information.

FlashRunner has been built for speed. Both the hardware and firmware have been engineered to work together in such an efficient way as to eliminate communication bottlenecks. On top of this, fast Programming Algorithms have been developed that reach the memory technology speed limit of the target device. This makes FlashRunner one of the fastest universal In-System Programmers on the market, enabling you to significantly cut production costs.

FlashRunner works either in standalone mode or driven by a host system, through Ethernet or RS-232 connections. Its simple and versatile interface allows FlashRunner to be easily and seamlessly integrated into Automatic Test Equipment (ATE) systems. FlashRunner is compatible with Agilent, Teradyne, SPEA, Genrad, and other systems and test fixtures.

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint. Every component of the system has been engineered to withstand the harshest production environments. Optoisolation, ESD protection, CRC on data transfers and detailed reports make FlashRunner the perfect choice when certainty of the programming flow is of the utmost importance.

Features

  • Extremely fast programming (it is one of the fastest insystem programming system on the market);
  • Standalone operations (projects and code images stored on memory cards);
  • Compact and robust design for production environments.

Hardware Features

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint.

  • 9 to 18V DC power supply input;
  • Six digital I/O lines;
  • Two digital I/O or analog output lines;
  • Two programmable output voltages;
  • One programmable clock output;
  • Secure Digital memory cards (up to 2 GB);
  • 512 bytes on-board dynamic memory;
  • On-board timekeeper and calendar;
  • Optoisolated inputs for project selection;
  • Two optoisolated command inputs (START and STOP);
  • Three optoisolated status outputs (FAIL, PASS, BUSY);
  • Optoisolated RS-232/Ethernet channel.

Software Features

FlashRunner is set up and controlled via ASCII-based commands. FlashRunner can receive and execute commands in two ways:

  • Over the RS-232 or Ethernet connection (Host mode);
  • Via “scripts” stored in its SD card (Standalone mode).

In the first case, FlashRunner is controlled by a host system (e.g. Windows HyperTerminal); in the latter case, FlashRunner works in standalone mode and is fully autonomous.

  • Fully autonomous standalone mode thanks to its SD memory cards (FAT16);
  • Controllable by any host system through a terminal utility and simple ASCII protocol;
  • Unlimited projects (scripts);
  • Interface Library DLL to control the instrument from within user written applications;
  • Optional Data Protection System to make the contents of the binary file to be programmed to the target device not readable (and not duplicable) by non-authorized people;
  • Log files;
  • Erase, blank check, program, read, verify, oscillator trimming, etc.

Avaible Models

4 ISP channels system (4 true parallel channels), no ISP channel demultiplexing

The FlashRunner Quattro series is targeted at Manufacturing Mass Programming and can work either in full standalone mode or controlled by a host system. Multiple programming up to 4 devices at a time. Suggested when you have up to 4 devices in the same panel or up to 4 deviced to be programmed in the same board.

8 ISP channels system (4 parallel channels, each demultiplexable to 2 channels, with galvanic isolation)

The FlashRunner Quattro series is targeted at Manufacturing Mass Programming and can work either in full standalone mode or controlled by a host system. Multiple programming up to 8 devices in two programming cycles. Suggested when you have up to 8 devices in the same panel or up to 8 devices to be programmed in the same board. Best solution for In Circuit testers thanks to galvanic isolation.

16 ISP channels system (4 parallel channels, each demultiplexable to 4 channels)

The FlashRunner Quattro series is targeted at Manufacturing Mass Programming and can work either in full standalone mode or controlled by a host system. Multiple programming up to 16 devices in four programming cycles. Suggested when you have up to 16 devices in the same panel or up to 16 deviced to be programmed in the same board.

CUBE

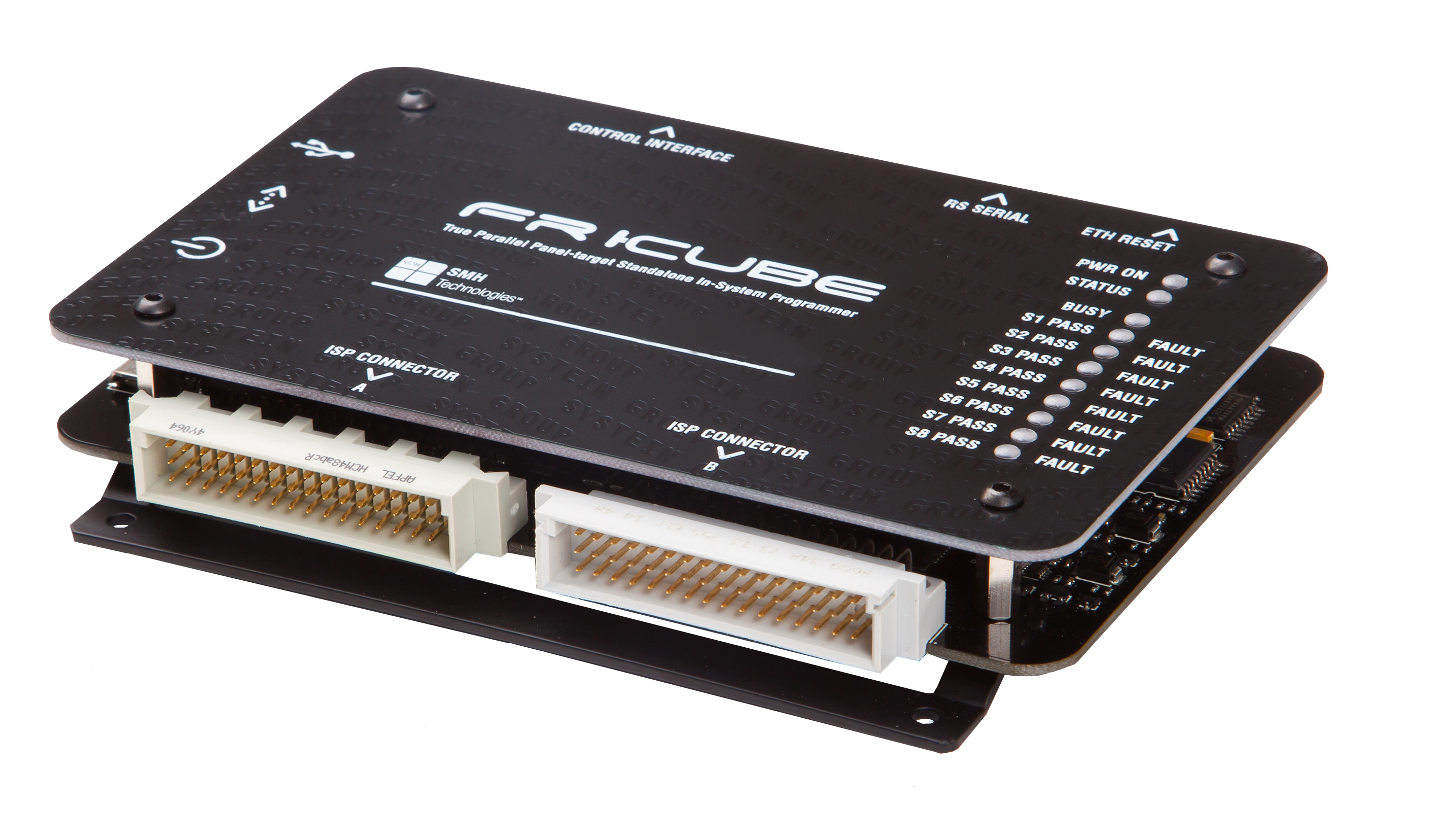

FlashRunner Cube is a high-integration in-system gang programmer, based on the FlashRunner technology. FlashRunner Cube is designed for programming multi-PCB panel assemblies.

FlashRunner Cube is particularly suited for multipanel applications and direct parallel programming (NOR-NAND memories) in modern production facilities. FlashRunner Cube can be easily integrated in ATE machines for reducing overall timings of functional tests.

FlashRunner’s fully reconfigurable and flexible hardware is capable of programming a vast amount of Flashed-based microcontrollers and serial memories. Currently supporting more than 3000 devices, FlashRunner’s device list is continuously increasing at a fast pace. Thanks to special partnerships with the most important Silicon Manufacturers, our engineers are constantly updated with first-hand technical information.
FlashRunner has been built for speed. Both the hardware and firmware have been engineered to work together in such an efficient way as to eliminate communication bottlenecks. On top of this, fast Programming Algorithms have been developed that reach the memory technology speed limit of the target device. This makes FlashRunner one of the fastest universal In-System Programmers on the market, enabling you to significantly cut production costs.

FlashRunner works either in standalone mode or driven by a host system, through Ethernet or RS-232 connections. Its simple and versatile interface allows FlashRunner to be easily and seamlessly integrated into Automatic Test Equipment (ATE) systems. FlashRunner is compatible with Agilent, Teradyne, SPEA, Genrad, and other systems and test fixtures.

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint. Every component of the system has been engineered to withstand the harshest production environments. Optoisolation, ESD protection, CRC on data transfers and detailed reports make FlashRunner the perfect choice when certainty of the programming flow is of the utmost importance.

Features

  • Extremely fast programming (it is one of the fastest in-system programming system on the market);
  • Standalone operations (projects and code images stored on memory cards);
  • Compact and robust design for production environments.

Hardware Features

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint.

  • 12 to 25V DC power supply input;
  • Seven digital I/O lines;
  • One programmable output power voltage;
  • One programmable clock output;
  • Secure Digital memory cards (up to 2 GB);
  • On-board dynamic memory;
  • On-board timekeeper and calendar;
  • Optoisolated inputs for project selection;
  • Optoisolated command inputs (START, START_ENA and STOP);
  • Three optoisolated status outputs (FAIL, PASS, BUSY);
  • Optoisolated RS-232/Ethernet channel.

FlashRunner Cube open architecture makes its firmware easily upgradable to support both new devices and new features.

Software Features

FlashRunner Cube is set up and controlled via ASCII-based commands. FlashRunner can receive and execute commands in two ways:

  • Over the RS-232 or Ethernet connection (Host mode);
  • Via “scripts” stored in its SD card (Standalone mode).

In the first case, FlashRunner Cube is controlled by a host system; in the latter case, FlashRunner Cube works in standalone mode and is fully autonomous.

  • Fully autonomous standalone mode thanks to its SD memory cards;
  • Controllable by any host system through a terminal utility and simple ASCII protocol;
  • Unlimited projects (scripts);
  • Interface Library DLL to control the instrument from within user written applications;
  • Optional Data Protection System to make the contents of the binary file to be programmed to the target device not readable (and not duplicable) by non-authorized people;
  • Erase, blank check, program, read, verify, oscillator trimming, etc.
  • Friendly set-up user interface (Windows platform)
  • Supports microcontrollers, serial memories and direct programming of parallel memories (eMMC, NAND and NOR)

FlashRunner comes with a Windows utility that allows you to communicate with the instrument and perform the most common operations: send commands, manage SD card files, update the instrument’s firmware, etc.

Avaible Models

2 true parallel ISP channels system

FlashRunner Cube series is targeted at Manufacturing Mass Production and can work either in full stand alone mode or controlled by host system.
Multiple programming up to 2 identical devices at a time.
Suggested when you have up to 2 identical devices, in the same panel or in the same board.
FR_GP_02 may be configured also for direct programming of NOR and eMMC memories.

4 true parallel ISP channels system

FlashRunner Cube series is targeted at Manufacturing Mass Production and can work either in full stand alone mode or controlled by host system.
Multiple programming up to 4 identical devices at a time.
Suggested when you have up to 4 identical devices in the same panel.

8 true parallel ISP channels system

FlashRunner Cube series is targeted at Manufacturing Mass Production and can work either in full stand alone mode or controlled by host system.
Multiple programming up to 8 identical devices at a time.
Suggested when you have up to 8 identical devices in the same panel.

SUPPORTED SILICON PRODUCER

FR01LAN

FR01LAN belongs to FlashRunner I series, a range of high performance, standalone In-System Programmers specific for Flash-based microcontrollers and serial memories. FlashRunner I series is targeted at production environments and can work either in full standalone mode or controlled by a host system.

All of the models of the FlashRunner I series have been designed for maximum performance and reliability.

FlashRunner has been built for speed. Both the hardware and firmware have been engineered to work together in such an efficient way as to eliminate communication bottlenecks. On top of this, fast Programming Algorithms have been developed that reach the memory technology speed limit of the target device. This makes FlashRunner one of the fastest universal In-System Programmers on the market, enabling you to significantly cut production costs.

FlashRunner works either in standalone mode or driven by a host system, through Ethernet or RS-232 connections. Its simple and versatile interface allows FlashRunner to be easily and seamlessly integrated into Automatic Test Equipment (ATE) systems. FlashRunner is compatible with Agilent, Teradyne, SPEA, Genrad, and other systems and test fixtures.

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint. Every component of the system has been engineered to withstand the harshest production environments. Optoisolation, ESD protection, CRC on data transfers and detailed reports make FlashRunner the perfect choice when certainty of the programming flow is of the utmost importance.

Features

  • Fast programming algorithms developed to reach the memory technology speed limit of the target device;
  • Easy ATE integration;
  • Standalone operations (projects and code images stored on a memory card);
  • Also controllable by any host system via RS-232 or Ethernet (depending on the model);
  • Supports most ISP protocols (BDM, JTAG, SPI, I2C, MON, ICC, SCI, etc.);
  • Flexible, fully configurable;
  • Compact and robust design for production environments;
  • Data integrity guaranteed (every data transfer to/from the host system or SD card is CRC tagged).

Hardware Features

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint.

  • 9 to 24V DC power supply input (110/220V AC for the FR01PRO model);
  • Five digital I/O lines;
  • Two digital I/O or analog output lines;
  • Two programmable output voltages (0 to 15V, 0.25A and 0 to 5V, 0.5A);
  • One analog input line;
  • One programmable clock output;
  • Secure Digital memory card (up to 2 GB);
  • 512 bytes on-board dynamic memory;
  • On-board timekeeper and calendar;
  • I/O protection;
  • Optoisolated inputs for project selection;
  • Two optoisolated command inputs (START and STOP);
  • Three optoisolated status outputs (FAIL, PASS, BUSY);
  • Optoisolated RS-232/Ethernet channel.

FlashRunner’s open architecture makes its firmware easily upgradable to support both new devices and new features.

Software Features

FlashRunner is set up and controlled via ASCII-based commands. FlashRunner can receive and execute commands in two ways:

  • Over the RS-232 or Ethernet connection (Host mode);
  • Via “scripts” stored in its SD card (Standalone mode). In the first case, FlashRunner is controlled by a host system (e.g. Windows HyperTerminal); in the latter case, FlashRunner works in standalone mode and is fully autonomous.
  • Fully autonomous standalone mode thanks to its SD memory card (FAT16);
  • Controllable by any host system through a terminal utility and simple ASCII protocol;
  • Unlimited projects (scripts);
  • Log files;
  • Erase, blank check, program, read, verify, oscillator trimming, etc.

FlashRunner comes with a Windows utility that allows you to communicate with the instrument and perform the most common operations: send commands, manage SD card files, update the instrument’s firmware, etc.

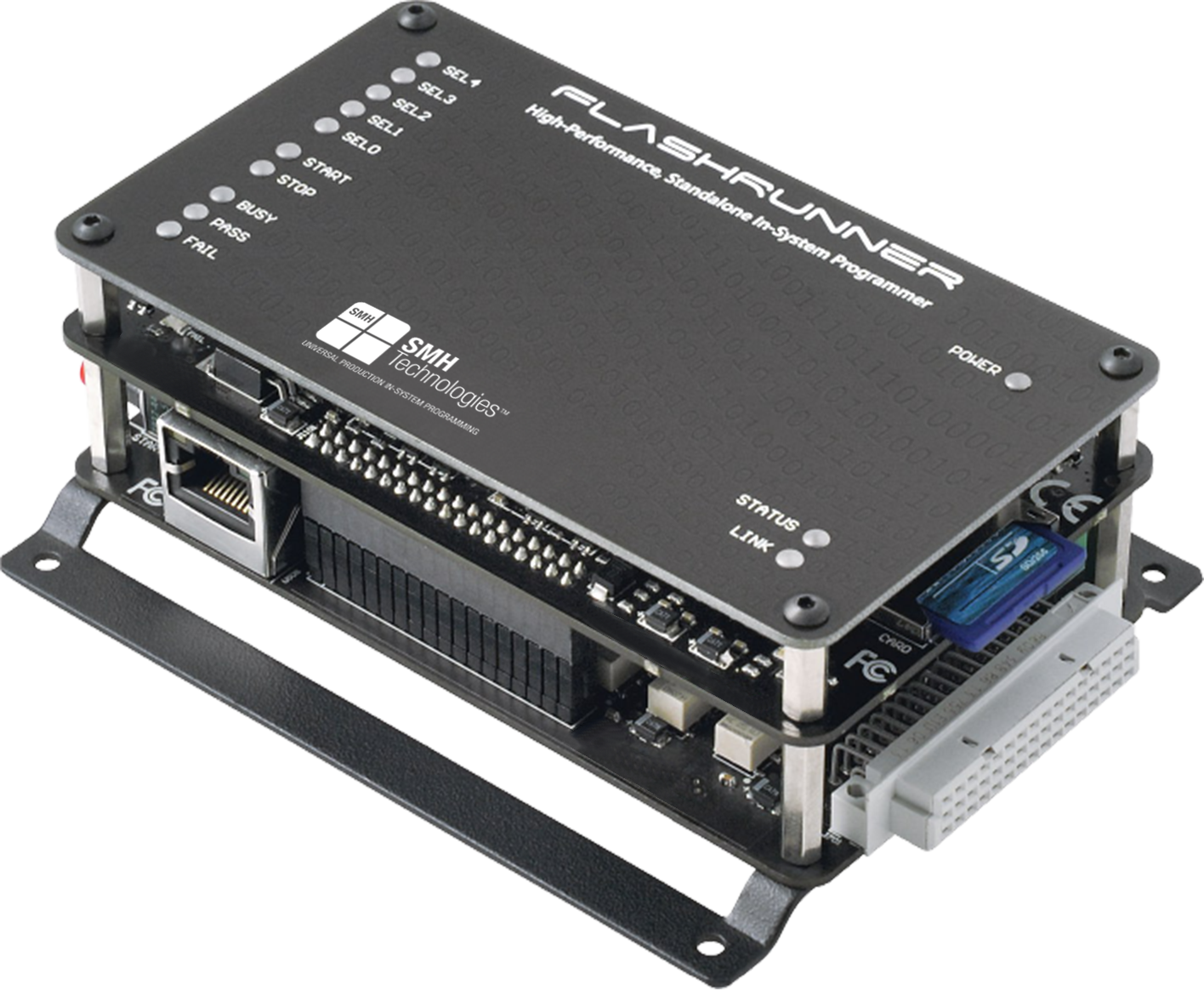

FR01AT0

FlashRunner FR01AT0 is a complete production In-System Programmer specifically designed for an easy integration with all in-circuit and functional tests (ATEs), like Agilent, Teradyne, SPEA, TRI and others.

FlashRunner FR01AT0 is based on and is softwarecompatible with FlashRunner FR01ENG, with the addition of new hardware features such as galvanic isolation (relay disconnection) with shield to fixture for all I/O ISP lines and the innovative power voltage monitoring which performs a constant check of the programming voltage throughout the programming cycle.

FlashRunner has been built for speed. Both the hardware and firmware have been engineered to work together in such an efficient way as to eliminate communication bottlenecks. On top of this, fast Programming Algorithms have been developed that reach the memory technology speed limit of the target device. This makes FlashRunner one of the fastest universal In-System Programmers on the market, enabling you to significantly cut production costs.

FlashRunner works either in standalone mode or driven by a host system, through Ethernet or RS-232 connections. Its simple and versatile interface allows FlashRunner to be easily and seamlessly integrated into Automatic Test Equipment (ATE) systems. FlashRunner is compatible with Agilent, Teradyne, SPEA, Genrad, and other systems and test fixtures.

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint. Every component of the system has been engineered to withstand the harshest production environments. Optoisolation, ESD protection, CRC on data transfers and detailed reports make FlashRunner the perfect choice when certainty of the programming flow is of the utmost importance.

Features

  • Universal, standalone and host controlled In-System Programmer;
  • Easy integration with all ATE test systems;
  • Based on FlashRunner FR01ENG engine;
  • Controllable by ATE through optoisolated LAN, RS-232 or parallel control lines;
  • Fast programming algorithms developed to reach the memory technology speed limit of the target device;
  • More than 3500 devices supported (Atmel, Freescale, Fujitsu, Infineon, Microchip, NEC, NXP, Renesas, STMicroelectronics, Texas Instruments and others);
  • Compact size (130 x 74 x 42 mm).

Hardware Features

FlashRunner FR01AT0 features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint-ideal for integration inside a fixture. FlashRunner’s open architecture makes its firmware easily upgradable to support both new devices and new features.

  • Single, wide range power supply input (9 to 24V DC);
  • Galvanic isolation (relay disconnection) with shield to fixture for all I/O ISP lines:
    – Seven digital I/Os / two analog output lines (shared);
    – Two programmable output voltages (0 to 15V, 0.25A and 0 to 5V, 0.5A);
    – One analog input line;
    – One programmable clock output.
  • Secure Digital memory card (up to 2 GB) for binary files and projects, plus 512 bytes on-board dynamic memory for serial numbering;
  • On-board timekeeper and calendar for time-stamped log file;
  • Optoisolated parallel control lines for project selection (START, STOP, FAIL, PASS, BUSY, SEL);
  • Optoisolated RS-232/Ethernet channel.

Software Features

FlashRunner FR01AT0 is set up and controlled via ASCII-based commands.

  • Controlled by a host PC through RS-232/Ethernet connections or in standalone mode through parallel control lines;
  • Unlimited number of projects (scripts) stored in its SD card;
  • Capability to support all types of ISP protocols (JTAG, SPI, I2C, SCI, BDM, etc);
  • Interface Library DLL to control the instrument from within user written applications;
  • Command-line utilities;
  • Optional Data Protection System to make the contents of the binary file to be programmed to the target device not readable (and not duplicable) by non-authorized people.

Advanced Features

  • Galvanic isolation (relay disconnection) for all I/O ISP lines (to put shared ISP lines on hiZ when the ATE is performing tasks other than programming);
  • Power voltage monitoring (on three ISP lines), with programmable threshold and pulse width, to continuously check if an ISP power supply line voltage falls below a safe level;
  • Over current monitoring on programmable power supply lines;
  • Multiplexing on ISP lines coming from ATE or FlashRunner to the fixture;
  • DIN41612 48-way female connector with interconnection flat cables with signal-ground pairs architecture.

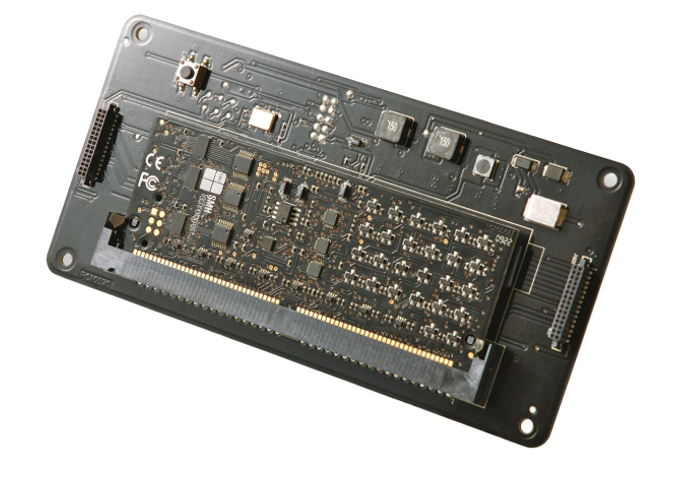

FR3070A

In-System Programmer for Agilent 3070 Utility Card.

FR3070A is an optional daughter board that can be mounted on Keysight Technologies Medalist In-circuit Board Test System Utility Card.

FlashRunner’s fully reconfigurable and flexible hardware is capable of programming a vast amount of Flashed-based microcontrollers and serial memories. Currently supporting more than 3000 devices, FlashRunner’s device list is continuously increasing at a fast pace. Thanks to special partnerships with the most important Silicon Manufacturers, our engineers are constantly updated with first-hand technical information.
FlashRunner has been built for speed. Both the hardware and firmware have been engineered to work together in such an efficient way as to eliminate communication bottlenecks. On top of this, fast Programming Algorithms have been developed that reach the memory technology speed limit of the target device. This makes FlashRunner one of the fastest universal In-System Programmers on the market, enabling you to significantly cut production costs.

FlashRunner works either in standalone mode or driven by a host system, through Ethernet or RS-232 connections. Its simple and versatile interface allows FlashRunner to be easily and seamlessly integrated into Automatic Test Equipment (ATE) systems. FlashRunner is compatible with Agilent, Teradyne, SPEA, Genrad, and other systems and test fixtures.

FlashRunner features state-of-the-art electronics to provide you with high integration flexibility in a compact footprint. Every component of the system has been engineered to withstand the harshest production environments. Optoisolation, ESD protection, CRC on data transfers and detailed reports make FlashRunner the perfect choice when certainty of the programming flow is of the utmost importance.

Features

  • Fast programming algorithms developed to reach the memory technology speed limit of the target device;
  • Supports most ISP protocols (BDM, JTAG, SPI, I2C, MON, ICC, SCI, etc.);
  • Data integrity guaranteed (every data transfer to/from the host system or Secure Digital card is CRC tagged);
  • It provides plug-in slots for common programming protocols for MCUs, Flash and EEPROM used in Automotive and other electronic industries.

Hardware Features

  • 12V power supply input;
  • ISP lines:
    – Six digital I/O lines;
    – Two digital I/O or analog output lines;
    – Two programmable output voltages;
    – One programmable clock output.
  • Secure Digital memory cards (up to 2 GB);
  • 512 bytes on-board dynamic memory;
  • No magnetic isolated Ethernet channels;
  • Clear and card reset input lines.

Software Features

  • Controllable by any Windows based system through specific DLL;
  • Unlimited software-selectable scripts projects;
  • Interface Library DLL to control the instrument from within user written applications;
  • Erase, blank check, program, read, verify, oscillator trimming, etc.

FR3070A In-System Programmer for Keysight Technologies 3070 Utility Card. Can be mounted on Keysight Technologies Medalist In-Circuit Board Test System Utility Card. Single programming. Can be mounted on Keysight Technologies Medalist In-Circuit Board Test System Utility Card. Multiple programming (3 devices at a time) by mounting 3 FR3070A on the same Utility Card.

Request a trial

Contact us

Traditional Licenses

Single License
FlashRunner Standard Programming Algorithm Mass Market
FlashRunner Standard Programming Algorithm No Mass Market
Silicon Producer Licenses
FlashRunner Programming Algorithms for all currently supported for each Silicon Producer
All Device Licenses
FlashRunner Programming Algorithms for all currently supported devices
2 times/year Upgrade Free
“Package” Licenses to be chosen within one year from invoicing date
FlashRunner Programming Algorithms package with 5 licenses free choice
FlashRunner Programming Algorithms package with 10 licenses free choice
FlashRunner Programming Algorithms package with 15 licenses free choice

Technical Support

Purchasing a product is only part of solving your programming needs. We know that you must count on professional help should the need arise. FlashRunner is sold and supported by a worldwide network of resellers and system integrators, comes with a three-year warranty and is backed up by knowledgeable and fast technical support. Additionally, our engineers are available for custom designs and validation reports, to help you start up your projects and providing you with accurate programming flow certifications.

Device Support

Our supported device list is daily updated and counts more than 6000+ items already. However, if you still can’t find the device you are looking for we offer you a development service which meets your needs. Every request will be handled in order to meet your production deadlines in time.

For more info

Contact us

TOOLS

CABLE INTERFACE

FlashRunner Cable Interface

FR04INTF16

FlashRunner Quattro Series
Cable Interface

FlashRunner Cable Interface

FR01INTF01

FlashRunner I, II, III Series
Cable Interface

CABLE

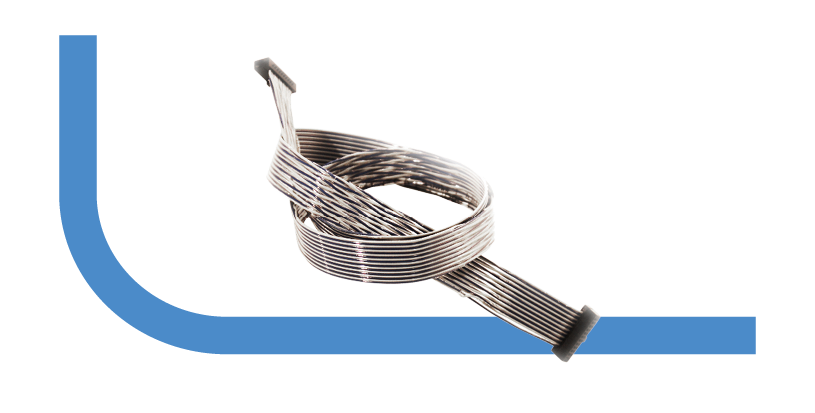

FlashRunner ISP Special Cable

FRCABLE 30/50/80/100

FlashRunner ISP Special
communication cable
30 / 50 / 80 / 100 cm long

HEADERS

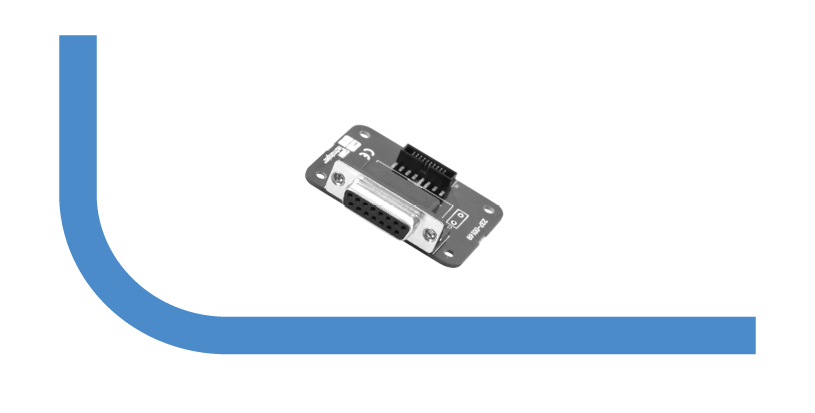

FlashRunner Header

FRHDRDB15

FlashRunner Header DB 15

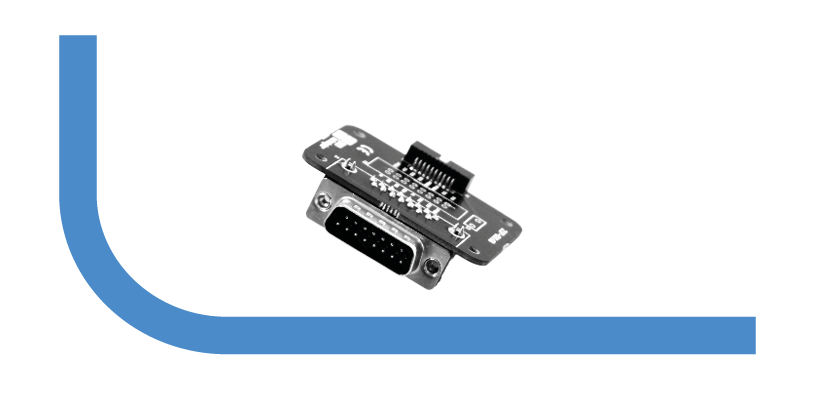

FlashRunner Header

FRHDRPSTR

Flash Runner
Header Wire Wrap Strip

File Size:1,712.62 Kb

FlashRunner 03 User’s Manual

File Size:22,115.59 Kb

FlashRunner Quattro
User’s Manual

File Size:2,115.59 Kb

FlashRunner Cube
User’s Manual

File Size:2,710.60 Kb

FlashRunner 01LAN
User’s Manual

File Size:2,189.51 Kb

FlashRunner 01AT0
User’s Manual

File Size::1,067.63 Kb

FlashRunner 3070A
User’s Manual

View all dowload

Contact your nearest distributor

View
